George Harrison's Rickenbacker Model 360/12C63

chitarra
battente
The 12 string guitar had its origin in Italy as a double course instrument commonly known as the baroque guitar. This instrument had 10 strings.. A variation was the chitarra battente, which was a 12 string instrument. The legendary Blues musician Leadbelly was said to have ordered a custom built 12 string Stella made by Italian luthier Fulvio Pardini, who worked for the Oscar Schmidt Company.

On the other side of the world, in Mexico and South America, double course instruments, such as the bandola, tiple, cuatro were very popular.

Before amplification, the idea of doubling strings (called courses) was a method of increasing the volume of an instrument.


cuatro


There were a handful of artists in the blues era that embraced the 12 string guitar, such as Blind Willie McTell, Blind Boy Fuller and the Reverend Gary Davis. This carried on to the folk era. Pete Seeger used a 12 string guitar as did Joni Collins, Barry McGuire and others.

Reverend Gary Davis was a legend to many of the folk artists, who befriended him. The powerful sound of his guitar was very desirable during those days.

The 12 string guitar did not become a part of rock until the Beatles came along.

 Not only were the boys from Liverpool prolific songwriters, they were also consummate gear-heads.

John Lennon was known for playing his little Rickenbacker 325.

Harrison seemed to be into Gretsch gear. He played Jet Stars, Tennesseans and finally the double cutaway Country Gentleman. But the real head-turner was his Rickenbacker 360/12C63.






Back in February of 1964, The Beatles came to the USA for three concerts and to make an appearance on the Ed Sullivan show. Francis Hall, commonly mentioned as F.C. Hall was CEO of a California company known as Rickenbacker Guitars. He had been impressed with the Beatles enormous popularity and wanted his company's instruments to be known as the Beatles guitar.

Prior to the New York trip, Mr. Hall had asked his design team to come up with a 12 string version of the six string Rickenbacker model 360.  Hall had noted the interest in the 12 string during the folk era and thought it may become a cross-over instrument in rock music. This model and other popular Rickenbacker instruments were designed by the legendary Roger Rossmeisl during his tenure with the company. The result was the 360/12C63 string model.


Several years ago, I participated on the Rickenbacker forum on Liszt, alt.guitar.rickenbacker/, which is now on the RIC web page.) John Hall, the son of Francis Hall, has taken over Rickenbacker and was posting almost daily on the forum.

I asked about Rickenbacker's unique 12 string headstock. Mr. Hall stated there were a couple of reasons the 3-on-a-side up and down design was utilized. It kept the guitar well balanced. Many other 12 strings were top heavy due to the added length of the headstock and weight of the extra tuners.

But mostly it was due to economics. Rickenbacker used the same neck blanks for their 12 string as they did for the six string. The width of each was the same, so they did not have to mill separate necks. Additionally, these guitars fit in the same size cases as the neck length for the six or twelve string was no different.


The Rickenbacker designers came up with three prototypes of the 360/12. The prototypes had a flat descending chromed-metal tail-piece instead of the "R" tail-piece.

Suzy Arden with the first 360/12 prototype
The first prototype went to Suzy Arden, a country music entertainer that performed in Las Vegas. The second prototype was featured in a display at the Savoy Hilton hotel in New York City during the Beatles first 1964 American trip.

F.C. Hall was hoping that Harrison would see the display and want that guitar. Unfortunately Harrison was ill during the trip and spent most of the time in his hotel room.

Since the Beatles did not see the display, Hall took a Rickenbacker prototype guitar; a 360/12 model to George Harrison. Hall was able to find the hotel where they were staying. Harrison loved it .  So George received the second 360-12 ever made.

Between Harrison and Lennon's use of Rickenbacker guitars, this locked in the success of the company.

When I saw the Byrds with McQuinn playing his Rickenbacker 360/12 on the Ed Sullivan show, I wondered how he got that sound out of what appeared to be a six string guitar (due to Rickenbacker’s unique headstock and tuner arrangement.)  Subsequently McQuinn became better known for his 370/12 - 3 pickup model.



The Rickenbacker 360/12C63 became one of Harrison's go-to guitars. It was featured on Beatles songs such as I Should Have Known Better, You Can't Do That and A Hard Days Night. It was also prominently featured in the Beatles Hard Days Night movie. Harrison played it on the Rubber Soul and Revolver albums.


Besides the previous reasons I have sighted for making the Rickenbacker 360/12C63 unique, there are a few more that result in it's unique chiming tone.

The string courses on all Rickenbacker twelve string models are reversed from the usual order of having the higher octave string as the 12th, 10th, 8th and 6th string.

On a Rickenbacker the lower octave string is the 12th, 10th, 8th and 6th string and the 11th, 9th, 7th and 5th strings are the higher octave with the 4th, 3rd, 2nd and 1st strings being in unison on each instrument.

A Rickenbacker 360/12 uses two Rickenbacker special design pickups, commonly known as toaster-top pickups due to the appearance of the covers looking like a bread toaster. Early on it was a noted anomaly that one Rickenbacker pickup may over-power another when both were switched on, so a blender or mixer control, commonly referred to as the fifth knob, was added to balance the sound. Additionally on Rickenbacker 3 and 6 series guitars a .0047mF capacitor is placed between the bridge pickup and the volume potentiometer.

Toaster pickups & 5th knob
Rickenbacker hollow body guitars are not actually hollow. They use a neck-through design which adds to their sustain. The necks are laminated with maple and mahogany for added strength. The bodies are routed out from the back for the cats eye sound hole and electronics. This allows the unseen portion of the neck to fit through the body.  Finally an end cap is added to enclose the back.



An advantage of this design is the neck can join the body at or near the last fret, since the neck is actually part of the body. There is no need for pickup routing, since Rickenbacker pickups are mounted on top of the body.

The original 1964 360/12 models featured a 21 fret neck. The flat tail-piece lasted until 1964 when it was changed to the more familiar "R" tail-piece. The guitar was produced in Fire-glow, which is Rickenbacker's term for red sunburst. In addition to the newer tail-piece, by 1965 binding was added to the sound hole and the body came with a new rounded look without the binding on the perimeter of the body's top.  In 1969 the neck was changed to include 24 frets.

Note Ric-o-sound dual jack

The Beatles use of the Rickenbacker 360/12 and later models guaranteed the popularity and success of Rickenbacker guitars. At present there is a waiting list to purchase a Rickenbacker guitar, though some major music retailers may have existing stock.

The 360/12's popularity set the stage for other major manufacturers to produce similar instruments.

Gibson created the ES 335-12 and Fender created the Fender XII. Danelectro guitars came out with a budget 12 string called the Bellzouki, which was designed by session player Vinnie Bell.





Though the Rickenbacker 360/12 not only sounds great, but has a beautiful visual appeal, there are a few complaints regarding it's design.

The narrow spacing on the neck is the most common complaint. There are articles on the Internet regarding installation of a new nut to solve this issue, but remember the 360/12 uses a six string neck.



The other complaint is restringing the guitar. This can become an all day chore due to the fact that the strings anchor the tail-piece to the body. This complaint is even expressed by famous Rick 12 string user, Roger McQuinn on his webpage.

Note the laminated neck.


Though Rickenbacker produced different twelve string guitars, and still does, it was the 360/12 that started it all.









Friday, December 24, 2010

Happy Holidays to All

Regardless of your personal beliefs, I wish each one of you the happiest of holidays.







May your New Year be filled with joy and blessings.









May it be filled with Peace

The great Hank Garland is playing guitar on this song

Sunday, December 19, 2010

Twisted, Fanned and Slanted

The Twisted


In 1979, Don Lace started an electronics company in the family garage in Huntington Beach, California.

One of Don’s first production jobs was developing a pickup with Fender that had a low rejection rate during production. In the mid 1980's, Don came up with the Lace Sensor. The Sensor was a uniquely designed single-coil pickup that reduced hum. Fender used it on their Lace Sensor Stratocaster and on other well known artist models.

In 1992, Don Sr. passed away, but his two sons Don and Jeff Lace, took control of the family business.  They not only carried on the family tradition, but introduced some wonderful innovations in guitar and bass pickup design.


Don and Jeff’s latest innovation is the Alumitone series of pickups.

We will talk about this new design and Lace pickups some other time. For now, the focus is on a unique guitar that Lace produced in the earlier part of this decade.

In an effort to make an ergonomic guitar, the Lace brothers came up with the idea of twisting the neck slightly to make playing feel more natural and match the position of the wrist and hand. They called this the Lace Cybercaster with the Lace Helix neck.

The Cybercaster's Helix neck features a 10.8ยบ twist on the first frets that straightens out as you go up. The guitar comes with two Lace Hemi Humbuckers.

It bears a slight resemblance to a Fender Jazzmaster that has been run over by a steamroller. The body is ash; the bolt on neck is maple. The bridge pickup has a Tele-style aluminum plate. The input is like that on a Fender Stratocaster. It comes with one volume and one tone potentiometer and a three way throw switch on the lower bout. Gotoh makes the tuners. The truss rod cap is also aluminum. The scale is 25.5” with 21 frets on the natural maple fretboard.


I know that Lace still produces the Cybercaster in several variations, but I am not certain if they have continued with the twisted Helix neck.





The Fanned



Ralph Novaks has been making guitars under the Novax name for sometime now. His specialty is guitars with Fan Frets. Novaks philosophy is that strings should have differing tension and different lengths to optimize tonality and performance.

This allows for ease of playing, since the string tension is reduced. By fanning the frets this creates a more even harmonic response.


Novak compares his method to that of a grand piano or a harp. These instruments not only use strings of different diameters, but also different lengths to achieve their sound. Novak has applied this to the guitar.

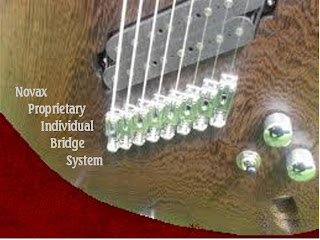

He also utilizes the Novax Proprietary Individual Bridge system that he describes,  “Our individual bridge system overcomes this by separating each saddle and “base plate,” taking advantage of the natural acoustical damping properties of wood vs. metal. The signature overtone series of each string in a chord remains intact, making the chord sound more “in-tune” and keeping the harmonic interest of the different voices.”
