The Bellzouki aka The Danelectro 12 String Guitar

In the mid 1960's there was a popular TV show geared to teens called The Patty Duke Show. Often one of the popular rock artists of the day would make an appearance on the show.

One of member of a long forgotten group had a guitarist that played a very unusual looking 12 string guitar. I had no clue what type of guitar this was until years later when I discovered it was made by The Danelecto Company of Neptune, New Jersey and was called The Bellzouki.

This guitar was based on an idea from Vinnie Bell. Bell was an in demand studio player in the 1960's. He had wonderful career and played with a myriad of artists and on literally hundreds of hit songs of all styles. In fact he still makes a living as a guitar player and you can hear his guitar in The Family Guy theme. One of the more recognizable songs he did was the watery guitar work on the theme to Midnight Cowboy. Check out his website for some great stories. Be sure to click on Memories and Above and Beyond the work of a session guitarist.

Though Bell is Italian, he was periodically asked to double on the Greek Bouzouki for a record.

A bouzouki is generally thought of as an eight string musical instrument that is shaped somewhat like a bowl back mandolin with an extended neck. It has four courses of strings tuned in unison and is played with a plectrum aka pick. The bouzouki is widely used in Greek and Turkish music. The eight string version is called a Tetrachord and is tuned in fifths just like a mandolin. The six string version has 3 courses of strings tuned in unison. This is call the Trichord Bouzouki.

Around 1960, several groups from Ireland that played traditional music of that country started using a version of the tetrachord bouzouki. However the body was flat and smaller than the Greek/Turkish models and the back was also flat. The tuning was modifed.

As most studio players were apt to do, Bell would tune the Bouzouki like a guitar. As the age of the electric 12 string guitar ushered in, Bell got the idea to create a twelve string electric guitar, and make the body look similar to the shape of a Bouzouki and electrify the instrument by adding a pickups.

He already had a deal with the Danelectro company which created an all wood electric guitar that he would endorse. He pitched this idea to Danelectro, drew up some plans and named it after himself. Thus the Bell-Bouzouki was born and known as the Bellzouki.

Danelectro model 7010 Bellzouki
The Danelectro Bellzouki Model 7010 was introduced around 1961. The body was tear drop shaped with two faux tortoise shell pickguards. The guitar came with one volume and one tone control, plus a 3 way toggle for tone selection. The neck, like all Danelectros, is a bolt on style and is made of maple capped with a rosewood fretboard. The nut is aluminum and the neck is reinforced with a steel truss rod.

Though the body appears to be solid, like all Danos it is a poplar frame covered with Masonite. The sunburst finish adds the illusion of wood. To play the model 7010 you needed a shoulder strap due to its Bouzouki-like shape.

 Bellzouki Model 7010 (the original) - Model 7020 - Model 7021
The scale for each of the Bellzouki models was 24 ½ inches and the neck was slightly wider than the neck on six string Danelectro guitars. All the models had one or two Lipstick pickups which have their own unique sound and these guitars were no exception to that quality.

The earliest models came with 2 unison G strings to give it more of a Bazouki sound. Later these were adapted so only the first and second strings were tuned in unison, while the bottom four courses were tuned in octaves.

Danelectro came out with two revised models, the 7020 and the 7021.

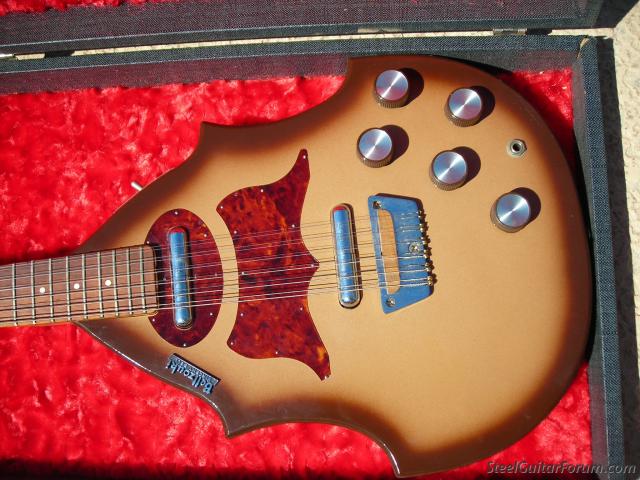

The model 7020 may have been due to a suggestion of a fan of Mr. Bell to improve his design. The model 7020 had a similar shape to the original tear drop, but 4 notches surround the body to make it possible to play the guitar while sitting. The toggle switch was moved from the top of the instrument to the lower side. This model came with twin lipstick pickups and five potentiometers for volume, tone and master.

The model 7021 was much like the 7020 in accouterments but its body shape was exactly like the Danelectro Electric Sitars body

1965 Danelectro Catalog
The Danelectro sitar that came with 18 strings and was another one of Vinnie Bell inventions. (There was another version of the Danelectro sitar with an oval shape and only six strings.) Most 1960’s groups favored more expensive model 12 string guitars, but the Danelectro 12 had been around much longer, it was an excellent player and a great bargain.
©UniqueGuitar Publications (text only)


lapt0p said...

I have a rare Danelectro 9 String Bellzouki modified for the english Group "The Pretty Things" in the late sixties it is in Black and is based on the 7020 with the bat shaped scratchplate in chrome.. only the top three strings are doubled up.... its a great instruent

Ripstop said...

I still have my 7020 66 Bellzouki all stock. It even has the foil sticker on the back.The pick guard is wiggle picture pearl. If I get a good offer I might sell it. I never had a case. It came shipped in a cardboard box and packing foam. I've had it 45 years.

Unknown said...

Ripstop - what would you consider a "good" offer? Can you send me some pics of it?

Anonymous said...

Have the 7010 teardrop model. Well worn, but once in tune, it still sounds great. Love the Danos!!!!

Anonymous said...

Interesting article.

Just one correction, though: Danelectro necks were made of poplar (not maple).

Dave Robinson said...

I checked and mine is a 2021 double pickup and white shimmer pick guard with the Coral Sitar shaped body sorry.

Ripstop said...

Still have the 7021 and the only thing not stock is a broken string which I removed. Everything else is out of the box when I bought it. It was played for a few months and put away. That was in either 66 or 69. I was out of the country for 2 1/2 years and the band fell apart during that time.In 69 the army took me and it went into storage.Still sounds good.

Etienne Barry said...

Hey Ripstop, do you still have your Bellzouki and is it still for sale? I'm looking for a sweet looking 12 string for my rock 'n roll band and I really dig the Bellzouki. Let me know at Thanks!

Unknown said...

Nice article, but some points are wrong. Here some corrections:

- The "tetrachord" Greek Bouzouki has four courses, but only two are in unison, the treble ones; the bass ones are in octaves. Also, the traditional tuning is CFAD (not in fifths!), like the first 4 courses on a Rick 12-string guitar (bass-string first: Cc Ff aa dd), but a whole tone down.

- The "trichord" Greek Bouzouki is traditionally tuned DAD (Dd aa dd), a modal-type tuning for older greek folk music based on modes and drones.

- Although the Greek Bouzouki is played in some areas in Turkey, the country's most popular instrument is the Ba─člama/Saz, a related instrument.


Unknown said... in Modesto Ca has one. I am tring to decide what to do with it?

Etienne Barry said...

@Kelly Barker, I’m still looking for a Bellzouki for my r’n’r band after all these years. I’d for sure be interested if the price is reasonable. Would you consider shipping it? If you could send me a couple photos so I can see what it looks like at that’d be great!

Unknown said...

"Tetrachord" and "Trichord" should be spelled "Tetrachordo" and "Trichordo"

JR Bradfield said...

I think I have the first 7020 prototype Vincent Bell assembled for Danelectro. My Jazz and Classical instructor William Mathews was from Red Bank NJ and often invited in for his opinion. He acquired it from them because it was slightly different than the production line guitars. He sold it to me in 1965 after I mentioned the Byrds "Mr. Tambourine Man" sound and he had it sitting around a few years and never used it. The headstock is made in 3 pieces and was not painted and flat on top. 2 nonadjustable truss rods under the fretboard. No serial number, different knobs, pickups not adjusted from the back. The frets are flat and never crowned but intonation and action good. If anyone knows someone that worked in the Neptune factory I'd like any info they have. Thanx, Junior Bradfield

Mid east said...

Hi Very Nice Blog. I Have Read Your Post. It Is Very Informative And Useful Thanks For Posting And Sharing With Us And Your Writing Style Is Very Nice.
Irish bouzouki

sloburnjo said...
Leslie West in 1966 'playing' 7020 Bellzouki

sloburnjo said...


JR Bradfield said...

I have one of the 1st prototype Bellzouki 12 string dual p/u. My Jazz and Classical instructor was from Red Bank NJ and Danelectro would bring him to the factory in Neptune as a consultant on new products in the early 60's. It had an experimental p/u selector switch located above the master Vol cntl. It couldn't be sold with the mod so they gave it to him. He gave it to me in 1966 since he would never use it and the folk rock was what I was playing then. wish I could post some pictures. This link might get show the rebuild.

Tim hoover said...

I just saw that video yesterday! Which is what brought me here,trying to find out what it was.
